Use this hinge with the Structures to make movable joints.

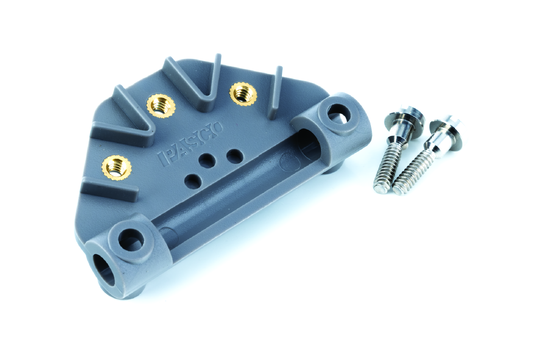

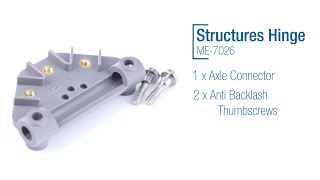

What's Included
- 1x Hinge
- 2x Anti-backlash 6-32 screw
What to Consider
See the Buying Guide for this item's required, recommended, and additional accessories.
Product Summary

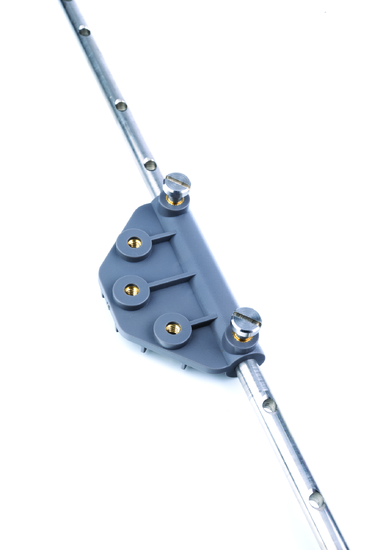

Use this hinge with the Structures to make movable joints. The hinge is designed to be used with the PASCO Structures axles. The hinge can be locked into place on the axle with two screws.
The hinge has attachment features for up to three Structures I-beams.
Applications

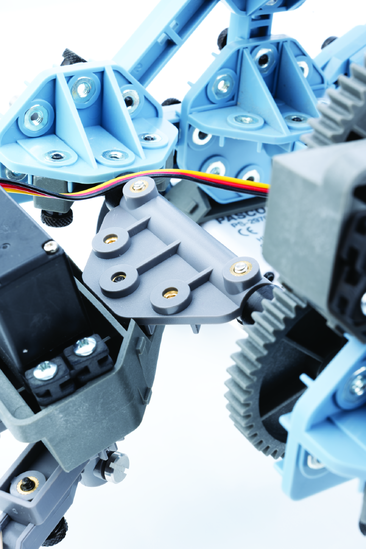

- Add a hinge to the Structures Gripper to be able to raise and lower the Gripper.
- Add hinges to a Structures door.
What's Included
- 1x Hinge
- 2x Anti-backlash 6-32 screw
Product Specifications
| Hinge length | 5.8 cm |
| Axle hole | Designed for 1/4-inch (6.4 mm) axle |
| Threaded holes for locking hinge onto axle | 6-32 |
| Threaded holes for attaching Structures I-beams | 6-32 |
Buying Guide
| Recommended Accessories | P/N | |
|---|---|---|
| Axle Spares | ME-6998A |
| Parts Available Separately | P/N | |
|---|---|---|
| StructureBOT | -- | -- |
